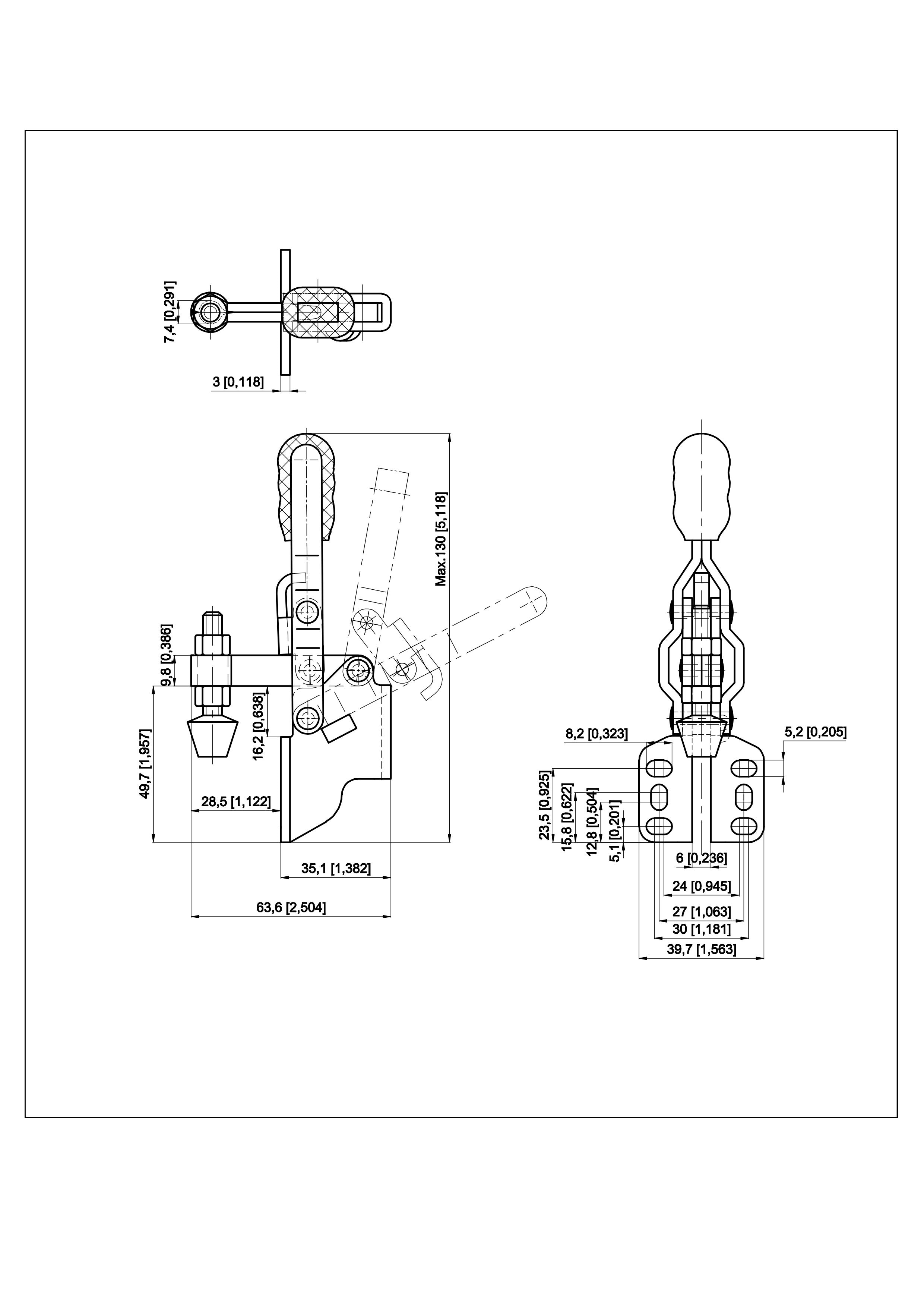

Metal Working Side Mounted U-bolt Vertical Handle Toggle Clamp GH-12050-SM
Manual Quick Release Vertical Hold Down Toggle Clamp GH-12050-SM
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 185 | 90 | 100 | 60 | GH-FC-14134 |
Engineering Machinery Manufacturing Industry
Such as excavators, loaders, concrete mixers, and pavers; manual toggle clamps are mainly used for welding cab covering metal parts as fixtures and positioning bolts for "welding jigs." Main application models: 12050-SM,13002-B,36204,30607,12305,22502-B,10247 etc.
Elevator Manufacturing Industry
1. In the production of box elevators, manual toggle clamps are mainly used as fixtures for "welding molds" of box cages.
Main application models: 101-E,101-J,204-GB series etc.
2. In the production of box elevator doors, manual toggle clamps are mainly used as fixtures for "welding molds."
Main application models: 12050-SM,101-E,10247,25382,21384 etc.
3. In the production of escalators, manual toggle clamps are mainly used for the welding of keels as fixtures.
Main application models: F clamps.
Container Manufacturing Industry
1. In the production of a dry box body, manual toggle clamps are mainly used as positioning bolts and fixtures for welding molds of the skeleton.
Main application models: 303-E,304-H,305-H,30607,101-J,204-G etc.
2. Production of refrigerated container boxes.
3. For the production of the insulating layer for refrigerated containers, manual toggle clamps are used as fixtures on "foaming molds."
Main application models: 12050-SM,36224,36003 etc.
Note: One method of production is to make the inner and outer boxes well and then fill the insulation materials. This method does not require clamps (currently rare).
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1 | 3 | 7 | 15 | 25 | 35 |
| Brand | JOINTECH |
| Model | GH-12050-SM |
| Bar Type | Solid |
| Base Type | Flanged Side Mount |
| Clamping Type | Vertical |
| Operation Type | Hold Down |
| Holding Force (LBS) | 190 |
| Spindle Standard | mm/inch |
| Material | Carbon Steel; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Zinc Plated; Tumbled; Polished; |
| Finish | Silver; Natural; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; |
| Sample Request | F.O.C. / $2USD |
| Stock Status: (PCS) | 200 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than 50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic |
| Shipment Method | Sea / Train / UPS / DHL / FEDEX / TNT / EMS |
